Get Custom View Image

Retrieves an image for a custom view (a saved or personalized state of a published sheet, including the user's filters). For a published view without a custom view, use Get View Image with the view id.

APIs called​

Required arguments​

customViewId​

The LUID of the custom view. This appears in the Tableau URL for a saved view (e.g. the <customViewId> in /views/WorkbookUrl/SheetUrl/<customViewId>/<customViewName>), not the published view id returned by List Views for the sheet alone.

Optional arguments​

width​

The width of the rendered image in pixels that, along with the value of height determine its resolution and aspect ratio.

Example: 1600

height​

The height of the rendered image in pixels that, along with the value of width, determine its resolution and aspect ratio.

Example: 1200

format​

The format of the image. Default: PNG

  • PNG (default): Raster image format. Works with all Tableau Server versions.
  • SVG: Vector graphics format. Scalable and smaller file size. Requires Tableau Server 2026.2.0+ (REST API v3.29+).

Choosing a format:

  • Prefer PNG when the image will be analyzed or interpreted (e.g. answering questions about the data in the viz).
  • Prefer SVG when the image will be displayed to the user (e.g. embedding or rendering the viz in a response).

Example: SVG

viewFilters​

Map of filter field names to values; sent as vf_<fieldname> query parameters per filter query views.

Response behavior​

The tool returns one of two result shapes:

  • MCP_S3_BUCKET unset (default): returns the rendered image inline, base64-encoded.
    • When format is PNG, the MCP result will contain the PNG image content (MCP result with type=image and mimeType=image/png).
    • When format is SVG, the MCP result will contain both the SVG XML (type=text) and the SVG image content (type=image and mimeType=image/svg+xml)
  • MCP_S3_BUCKET set: returns a resource_link with a short-lived presigned URL to the rendered image in S3 (with mimeType matching format), instead of inlining the image data.

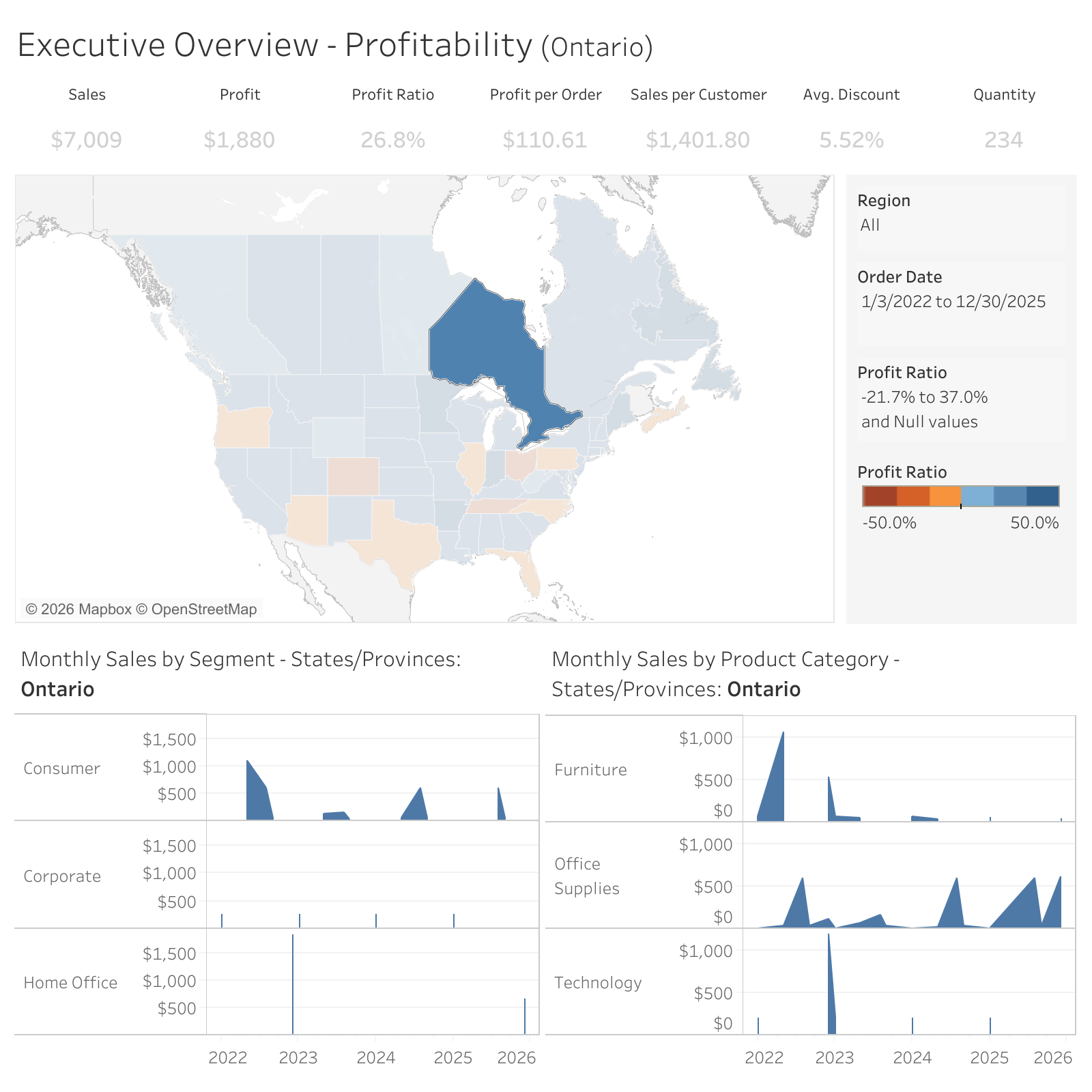

Example result (default)​

Superstore View Image

Example result (S3 mode)​

{
  "type": "resource_link",
  "uri": "https://example-bucket.s3.amazonaws.com/...presigned...",
  "name": "view-image.png",
  "mimeType": "image/png",
  "description": "Rendered view image stored in S3. This is a short-lived presigned URL."
}
